Urology
WiSCOPE URS

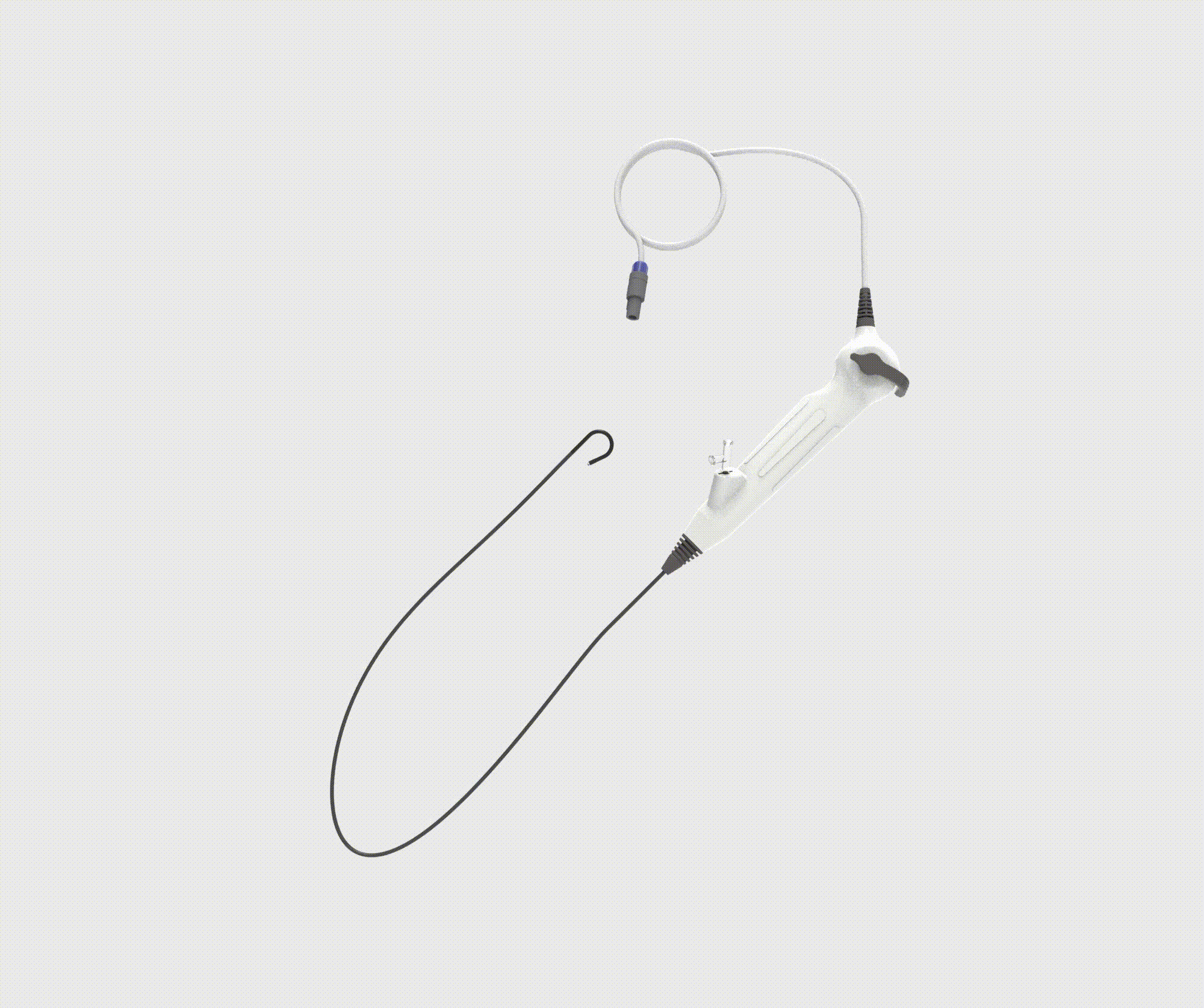

Single-Use Digital Flexible Ureteroscope
New as well in 7.5 FR outer diameter with the same size working channel (3.6 FR)
Overview
The WiScope Single-Use Digital Flexible Ureteroscope delivers high-resolution digital images and allows with its navigation capability to remove stones easily, quickly and safely. With a new scope for every patient the WiScope ensures dependable performance for every case, no risk of cross-contamination, no degradation of scope performance over time, no timely and costly reprocessing and no scope repairs.

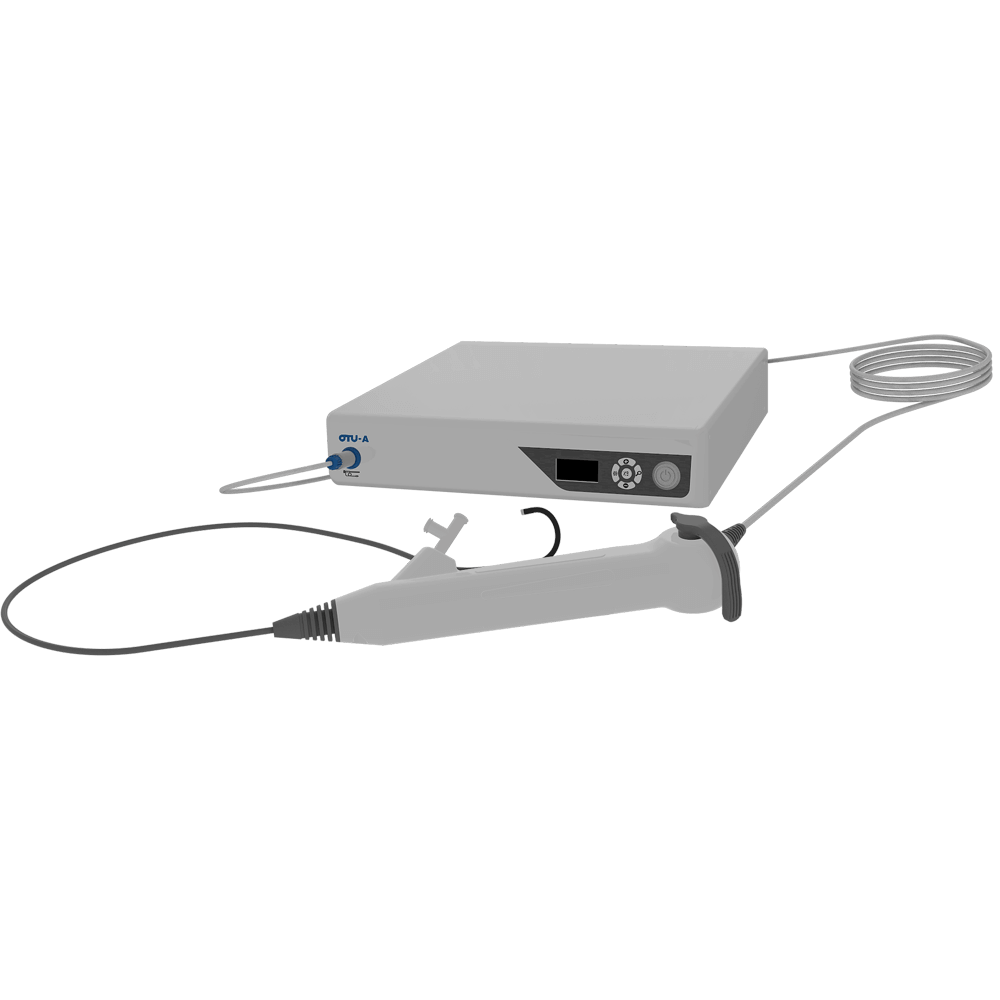

The WiScope can be used with its own monitor or with your existing OR monitor. The 275° dual deflection allows for excellent visibility and accessibility to treat a variety of urological conditions, while the lightweight, ergonomic handle help reduce operating fatigue.
Single-Use Digital Flexible Ureteroscope
Advantages
- No risk of cross contamination
- No timely and costly reprocessing
- No delays due to unavailability
- No costly maintenance and repairs
- Ergonomic, lightweight handpiece

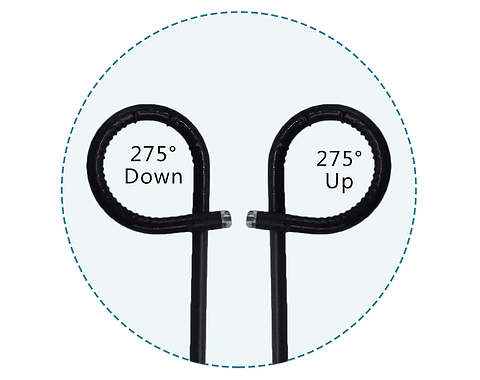

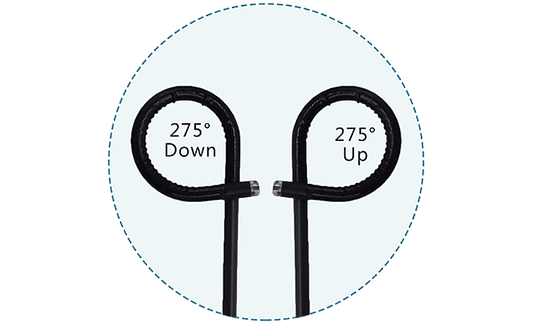

Flexion
- Maximal deflection of 275° in two directions
- Excellent maneuverability
- Self locking deflection angle

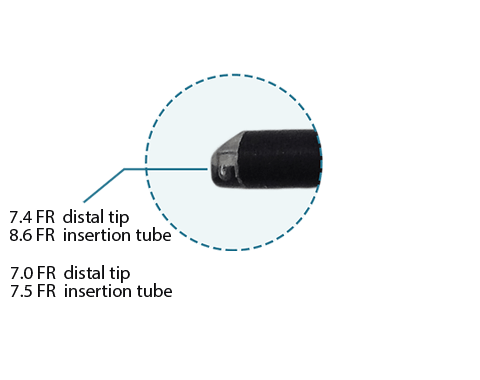

Distal tip
- Bullet-like outline for easy insertion
- The thin insertion tube facilitates operations and minimizes patient injury risks
- 1:1 implementation of hand movements trough the distal end

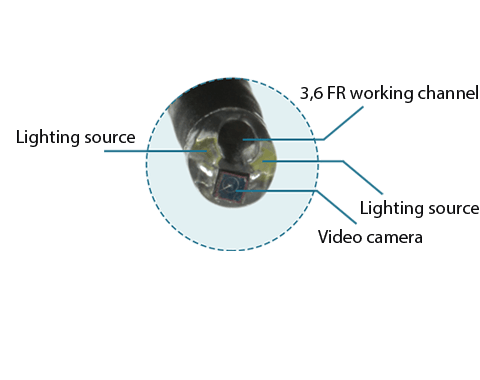

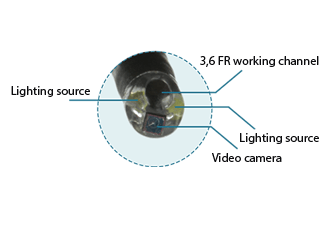

Working channel
- Image resolution of 400 x 400 pixels

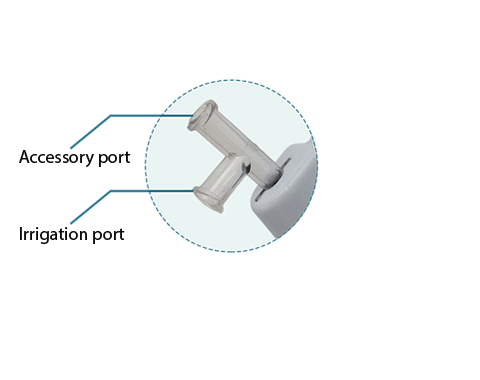

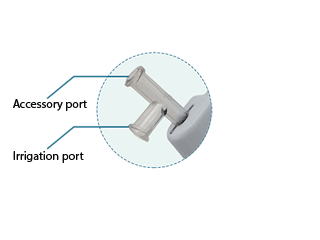

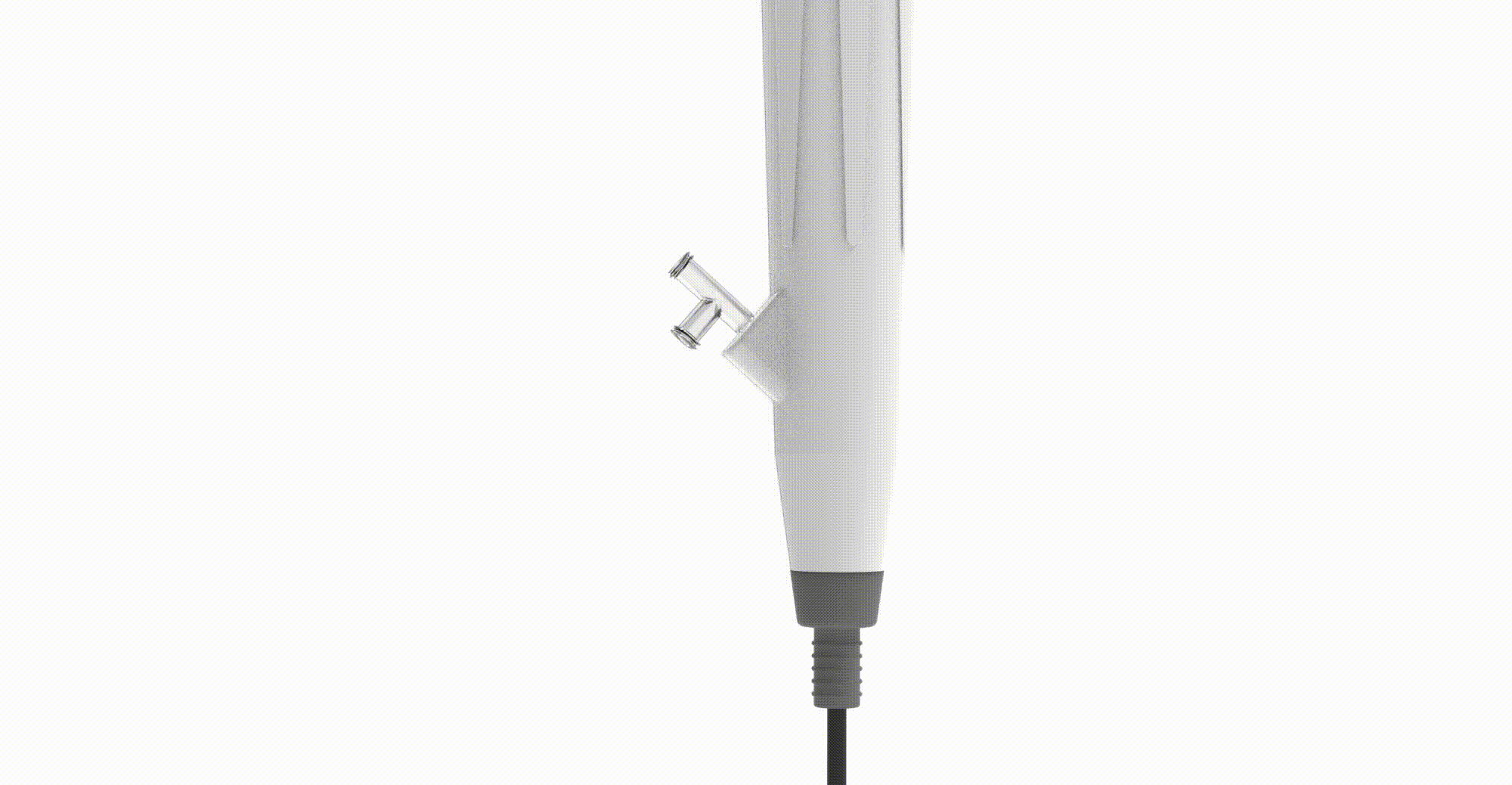

Accessory Port
- Allow passage of accessory instruments and fluid injection respectively during procedures

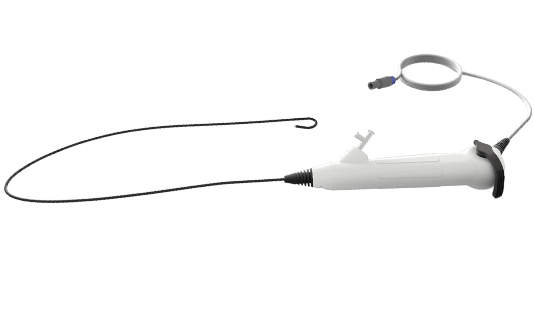

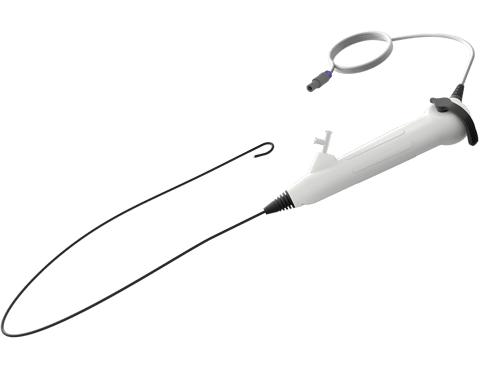

WiScope Single-Use Digital Flexible Ureteroscope
There are four models of the WiScope available:
- OTU-100RR – 8.6 FR Outer Diameter, Reverse Reflection, Model for right-handed
- OTU-100RL – 7.5 FR Outer Diameter, Reverse Reflection, Model for right-handed
| Ureteroscope Specifications | |
| Field of View | 100° |
| Direction of View | Forward |
| Depht of Field | 2 - 50 mm |
| Distal Tip Diameter | 7.4 Fr |
| Insertion Tube Outer Diameter | 8.4 Fr |
| Working Channel Diameter | 3.6 Fr |
| Angulation Range | 275° Up / 275° Down |
| Working Length of Shaft | 670 mm |
| Total Length | 905 mm |

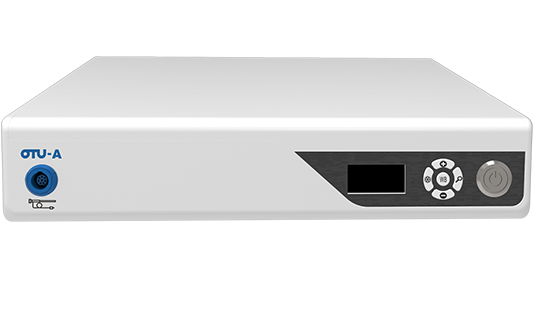

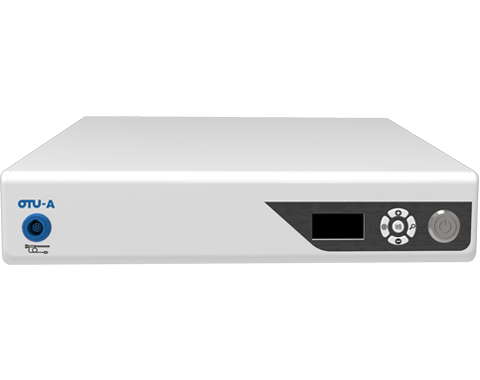

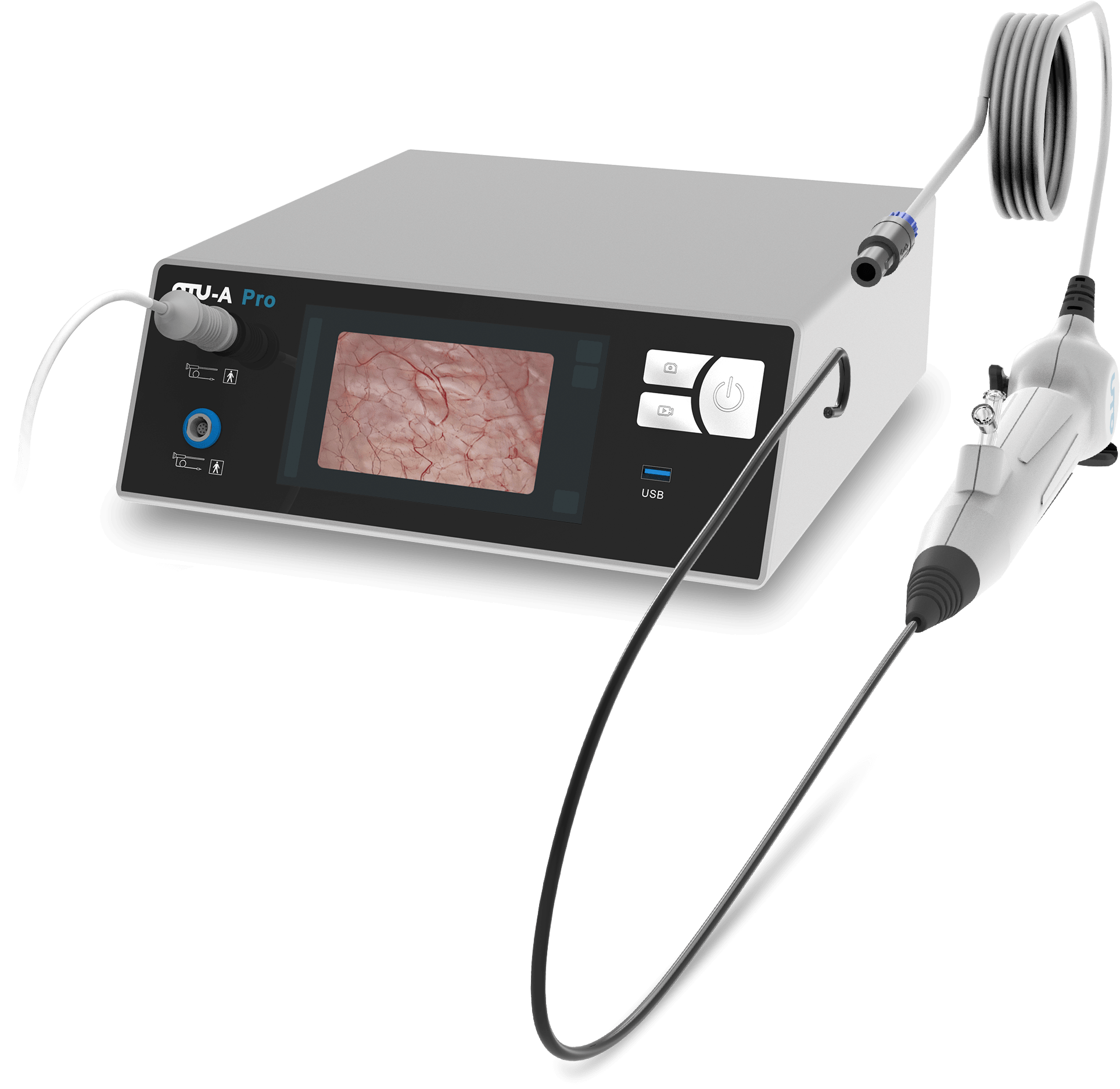

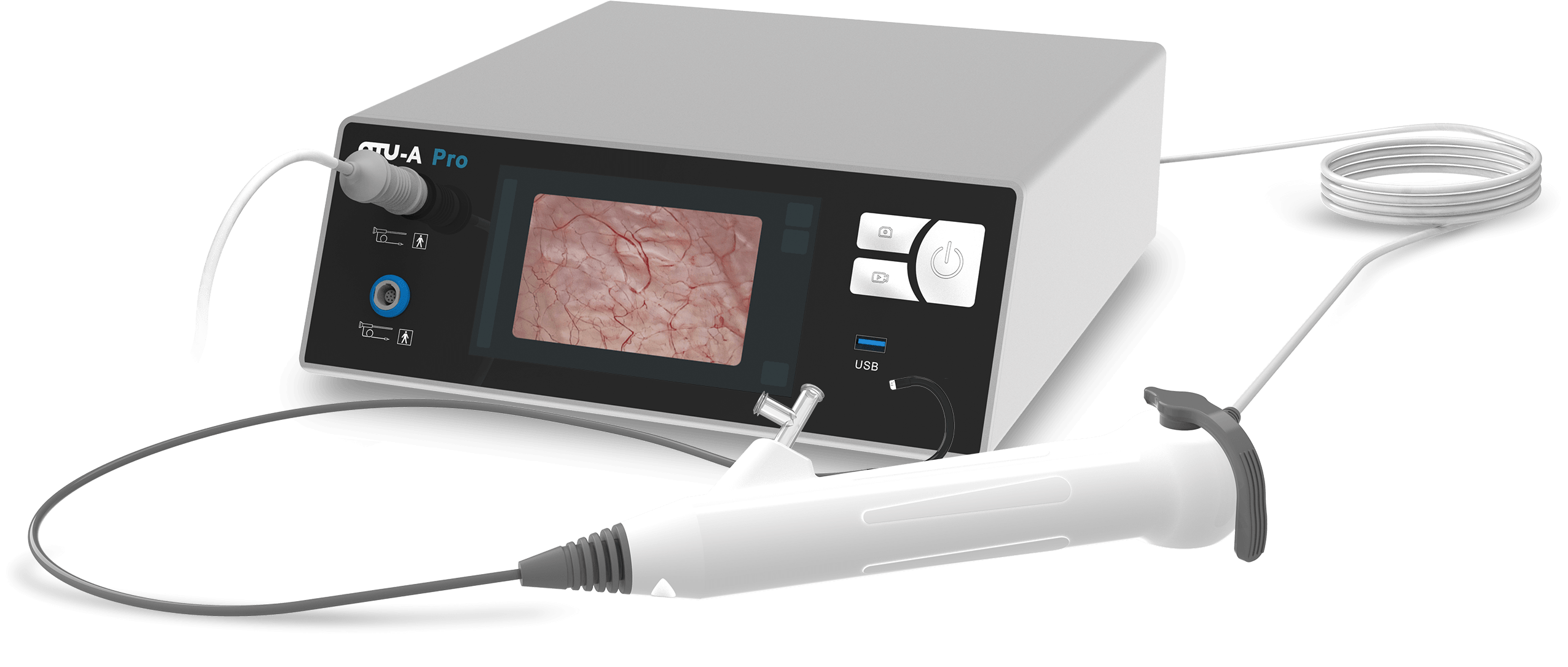

WiScope HD Image System
- The new WiScope HD image system OTU-A Pro provides the LED light, processes images from the cystoscope and outputs the video signal to a display. Images can be taken and stored with the device. It can be integrated in almost any existing endoscopy tower
- Standard cystoscopes and HD cystoscopes can be connected
| Image System Specifications | |
| Voltage | 100 ... 240 V AC |
| Frequency | 50/60 Hz |
| Input Current | 1.0 - 1.5 A |
| Key Functions |
Brightness Increase / Decrease Zoom Image Freezing White Balance Recording Videos and Taking Snapshots Storage of Images and Videos File Management / Database Functions |
| Video Output |
CVBS, SDI, DVI, HDMI |
| Dimensions (WxHxD) |
36 x 12 x 33.5 cm |
| Weight |
4.9 kg |
