WiSCOPE CYSTO
Single-Use Digital Flexible Cystoscope
Overview
The WiScope Single-Use Digital Flexible Cystoscope delivers high-resolution digital images and allows with its navigation capability to visually assess the urethra and the urinary bladder. With a new scope for every patient the WiScope ensures dependable performance for every case, no risk of cross-contamination, no degradation of scope performance over time, no timely and costly reprocessing and no scope repairs.
The WiScope Cystoscope can be used with its own monitor or with your existing OR monitor. The 210° dual deflection allows for excellent visibility and accessibility to treat a variety of urological conditions, while the lightweight, ergonomic handle help reduce operating fatigue.
Advantages
- No risk of cross contamination
- No timely and costly reprocessing
- No delays due to unavailability
- No costly maintenance and repairs
- Ergonomic, lightweight handpiece

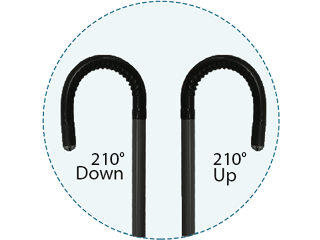

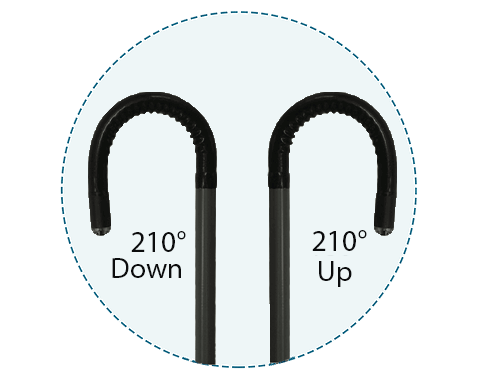

Flexion
- Maximal deflection of 210° in two directions
- Excellent maneuverability
- Self locking deflection angle

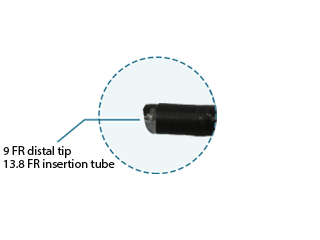

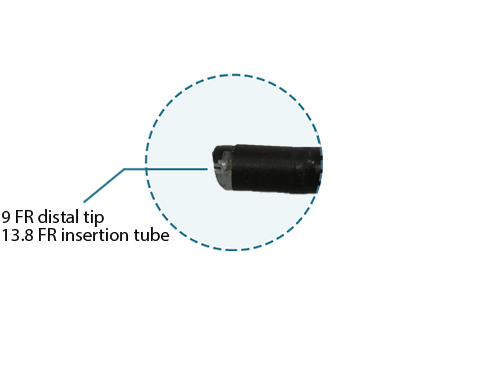

Distal tip
- Bullet-like outline for easy insertion
- The thin insertion tube facilitates operations and minimizes patient injury risks
- 1:1 implementation of hand movements trough the distal end

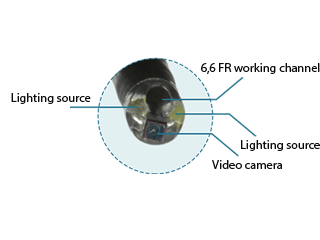

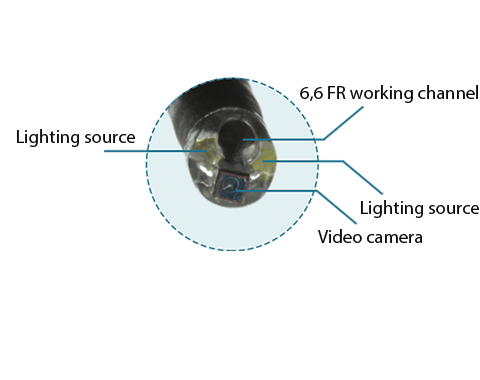

Working channel
- 6.6 FR working channel
- Image resolution of 400 x 400 pixels
- Multilevel illumination adjustment

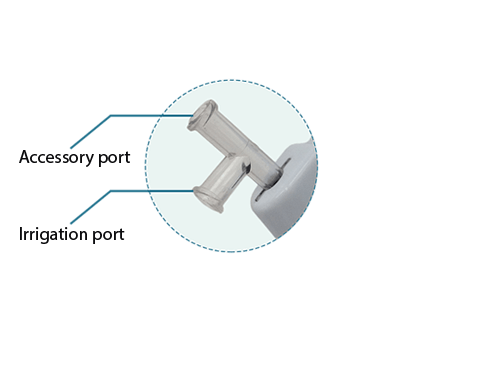

Accessory Port
- Allow passage of accessory instruments and fluid injection respectively during procedures

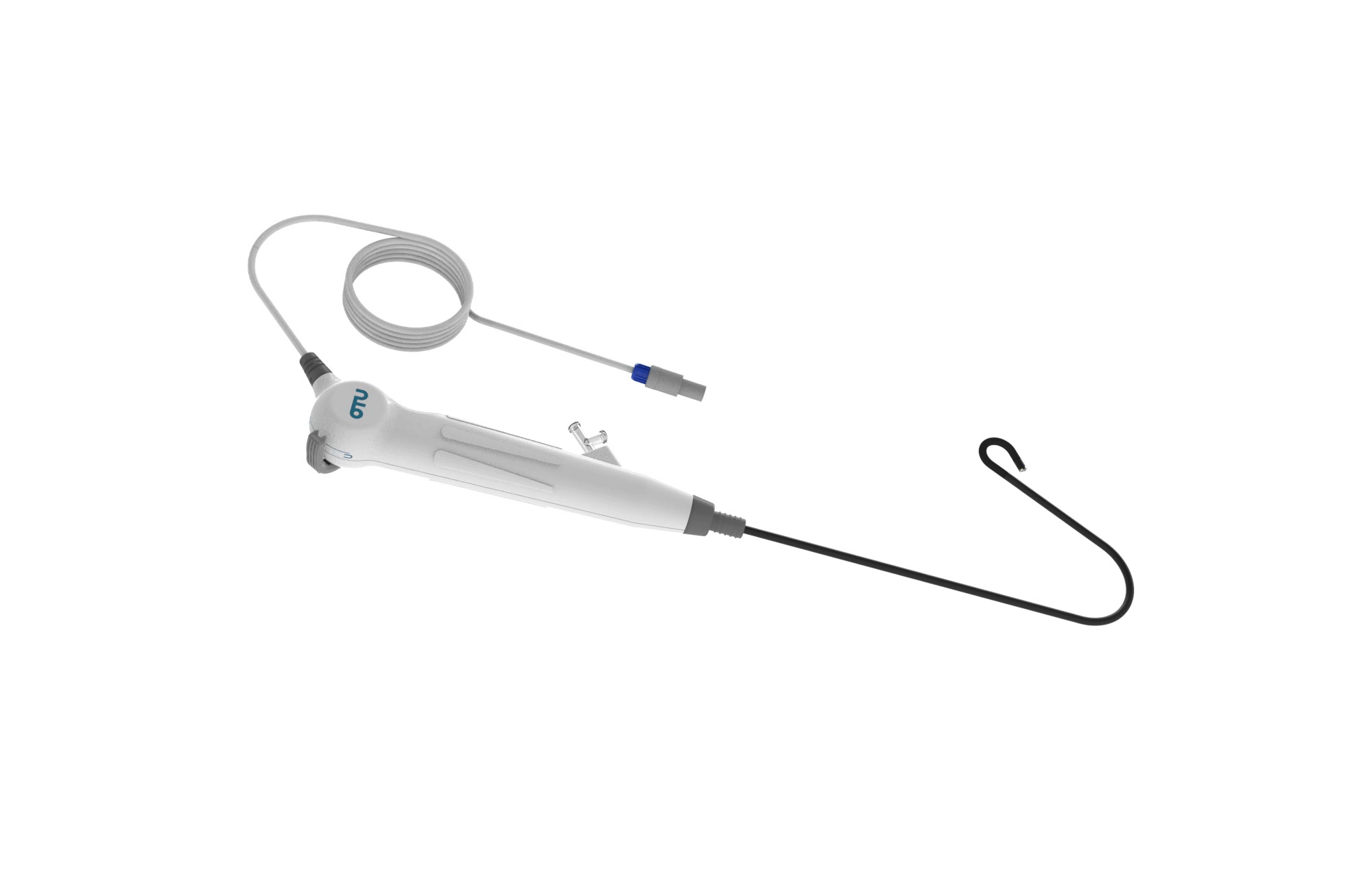

WiScope Single-Use Digital Flexible Cystoscope
- WiScope Cystoscope, Type OTU-C380RR – 13.8 FR outer diameter, 6.6 FR working channel, reverse deflection
| Cystoscope Specifications | |
| Field of View | 100° |
| Direction of View | Forward |
| Depht of Field | 2 - 50 mm |
| Distal Tip Diameter | 9.0 Fr |
| Insertion Tube Outer Diameter | 15.3 Fr |
| Working Channel Diameter | 6.6 Fr |
| Angulation Range | 210° Up / 210° Down |
| Working Length of Shaft | 380 mm |
| Total Length | 615 mm |
WiScope HD Image System
- The new WiScope HD image system OTU-A Pro provides the LED light, processes images from the cystoscope and outputs the video signal to a display. Images can be taken and stored with the device. It can be integrated in almost any existing endoscopy tower
- Standard cystoscopes and HD cystoscopes can be connected
| Image System Specifications | |
| Voltage | 100 ... 240 V AC |
| Frequency | 50/60 Hz |
| Input Current | 1.0 - 1.5 A |
| Key Functions |
Brightness Increase / Decrease Zoom Image Freezing White Balance Recording Videos and Taking Snapshots Storage of Images and Videos File Management / Database Functions |
| Video Output |
CVBS, SDI, DVI, HDMI |
| Dimensions (WxHxD) |
36 x 12 x 33.5 cm |
| Weight |
4.9 kg
|
WiScope Tablet
- The WiScope Tablet provides the LED light, processes the images from the cystoscope and displays them in real time on the screen
