SONATHERM
Laparoscopic HIFU Surgical Ablation System
Description

Sonatherm® uses a robotic laparoscopic probe to deliver precise and focused ablative therapy to soft tissue with a customizable ablation zone. Sonatherm is powered by an exclusive ultrasound platform, known as Sonasource, which allows physicians to:

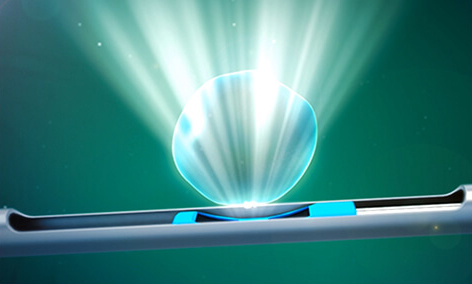

  • Aim at specific tissue using integrated ultrasound imaging and sophisticated planning tools.
    The Sonatherm® system uses high intensity focused ultrasound (HIFU) energy to ablate soft tissue within the body. HIFU waves are concentrated from the transducer (similar to a magnifying glass) into the ablation zone.

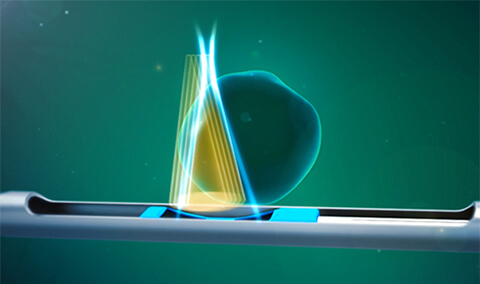

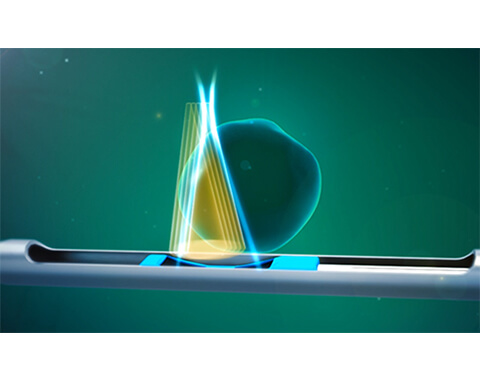

  • Ablate with pinpoint accuracy while sparing untargeted tissue.
    During thermal ablation, the temperature rises rapidly causing complete cellular necrosis, destroying all targeted tissue. The ablation of soft tissue with the laparoscopic probe occurs from the ultrasound focal zone back to the surface of the targeted ablation area.

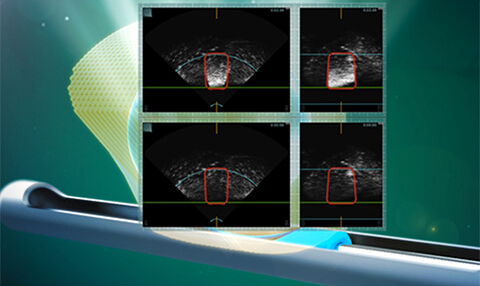

  • Analyze procedure results using real-time ultrasound imaging.
    The laparoscopic probe's robotic transducer is fully integrated with imaging and ablation crystals, combined within the same transducer.
Components

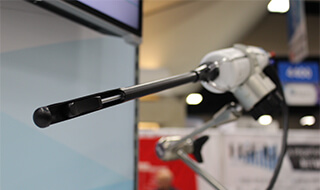

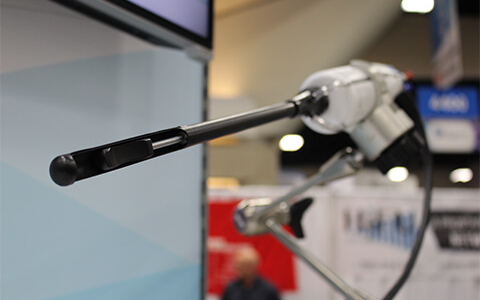

The Probe

The robotic laparoscopic Sonatherm® probe delivers precise and focused ablative energy to soft tissue with a customizable zone of ablation.

It has the following features:
  • 4 MHz HIFU transducer
  • • 35 mm focal length (30 mm ablation depth)
  • • 6.5 MHz ultrasound imaging (biplanar)
  • • Compatible with 15 mm port
  • • Single-use probe tip

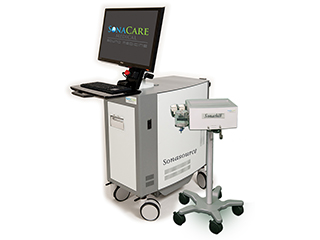

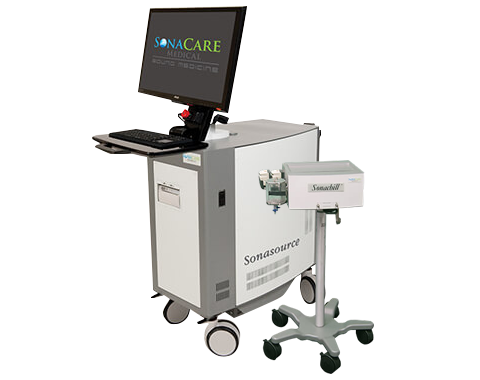

The Sonasource
The exclusive focused ultrasound platform Sonasource powers the Sonatherm probe and allows the surgeon to plan, perform and analyze the treatment. It is the most versatile, transportable focused ultrasound thermal ablation platform available in the market today.
Sonasource is comprised of several integrated programmable hardware and software modules that are used to drive and control SonaCare Medical's probes. The console includes all electronics required for user interaction with all probe imaging and treatment functions.
Also included with Sonasource is Sonachill, a state-of-the-art water degasser, cooler and circulator used to ensure temperature stabilization and acoustic coupling with targeted tissue.
Sonatherm® Disposable Kit
It is comprised of a sterile probe tip pack and a water path kit. The probe tip allows sterile patient contact required for acoustic coupling between the target tissue and energy source. The water path tubing connects the probe tip directly to the Sonachill, which controls the temperature of the transducer by circulating sterile water.
SELECTED PUBLICATIONS
2002
Laparoscopic High Intensity Focused Ultrasound: Application to Kidney Ablation
Tavakkoli, Jahangir, Victor V. Rao, Ralf Seip, Ryan F. Paterson, Eric Barret, Liang Cheng, Arieh L. Shalhav, and Narendra T. Sanghvi. "Laparoscopic High Intensity Focused Ultrasound: Application to Kidney Ablation." In Proc International Symposium Therapeutic Ultrasound, 202-10, 2002.
January 2003
Laparoscopic Partial Kidney Ablation with High Intensity Focused Ultrasound
Paterson, Ryan F, Eric Barret, Tibério M Siqueira Jr, Thomas A Gardner, Jahangir Tavakkoli, Victor V Rao, Narendra T Sanghvi, Liang Cheng, and Arieh L Shalhav. "Laparoscopic Partial Kidney Ablation with High Intensity Focused Ultrasound." The Journal of Urology 169, no. 1 (January 2003): 347-351. doi:10.1097/01.ju.0000000000.00000.00.
February 2009
High Intensity Focused Ultrasound Renal Tissue Ablation: a Laparoscopic Porcine Model
Orvieto, Marcelo A, Kevin C Zorn, Mark B Lyon, Stephen R Tolhurst, David E Rapp, Ralf Seip, Narendra Sanghvi, and Arieh Shalhav. "High Intensity Focused Ultrasound Renal Tissue Ablation: a Laparoscopic Porcine Model." The Journal of Urology 181, no. 2 (February 2009): 861-866. doi:10.1016/j.juro.2008.10.066.
April 2008
A Novel Approach to Energy Ablative Therapy of Small Renal Tumours: Laparoscopic High-intensity Focused Ultrasound
Klingler, H Christoph, Martin Susani, Ralf Seip, Julian Mauermann, Naren Sanghvi, and Michael J Marberger. "A Novel Approach to Energy Ablative Therapy of Small Renal Tumours: Laparoscopic High-intensity Focused Ultrasound."European Urology 53, no. 4 (April 2008): 810-816; discussion 817-818. doi:10.1016/j.eururo.2007.11.020.
April 2011
Laparoscopic High-intensity Focused Ultrasound for Renal Tumours: a Proof of Concept Study
Ritchie, Robert W, Tom A Leslie, Gareth D H Turner, Ian S D Roberts, Leonardo D'Urso, Devis Collura, Andrea Demarchi, Giovanni Muto, and Mark E Sullivan."Laparoscopic High-intensity Focused Ultrasound for Renal Tumours: a Proof of Concept Study." BJU International 107, no. 8 (April 2011): 1290-1296. doi:10.1111/j.1464-410X.2010.09620.x.
2008
High-intensity Focused Ultrasound in Small Renal Masses
Rubio Briones, Jose, Argimiro Collado Serra, Alvaro Gómez-Ferrer Lozano, Juan Casanova Ramón-Borja, Inmaculada Iborra Juan, and Eduardo Solsona Narbón."High-intensity Focused Ultrasound in Small Renal Masses."Advances in Urology (2008): 809845. doi:10.1155/2008/809845.
